Voukoder not render 5.1 channel audio in Vegas

    I tested the Voukoder connector 1.1.0 on Vegas Pro 17 with a project containing 5.1 channel audio.

    The rendering of Voukoder is correct. Here Media info shows 6 channels in the final file rendered by Voukoder.

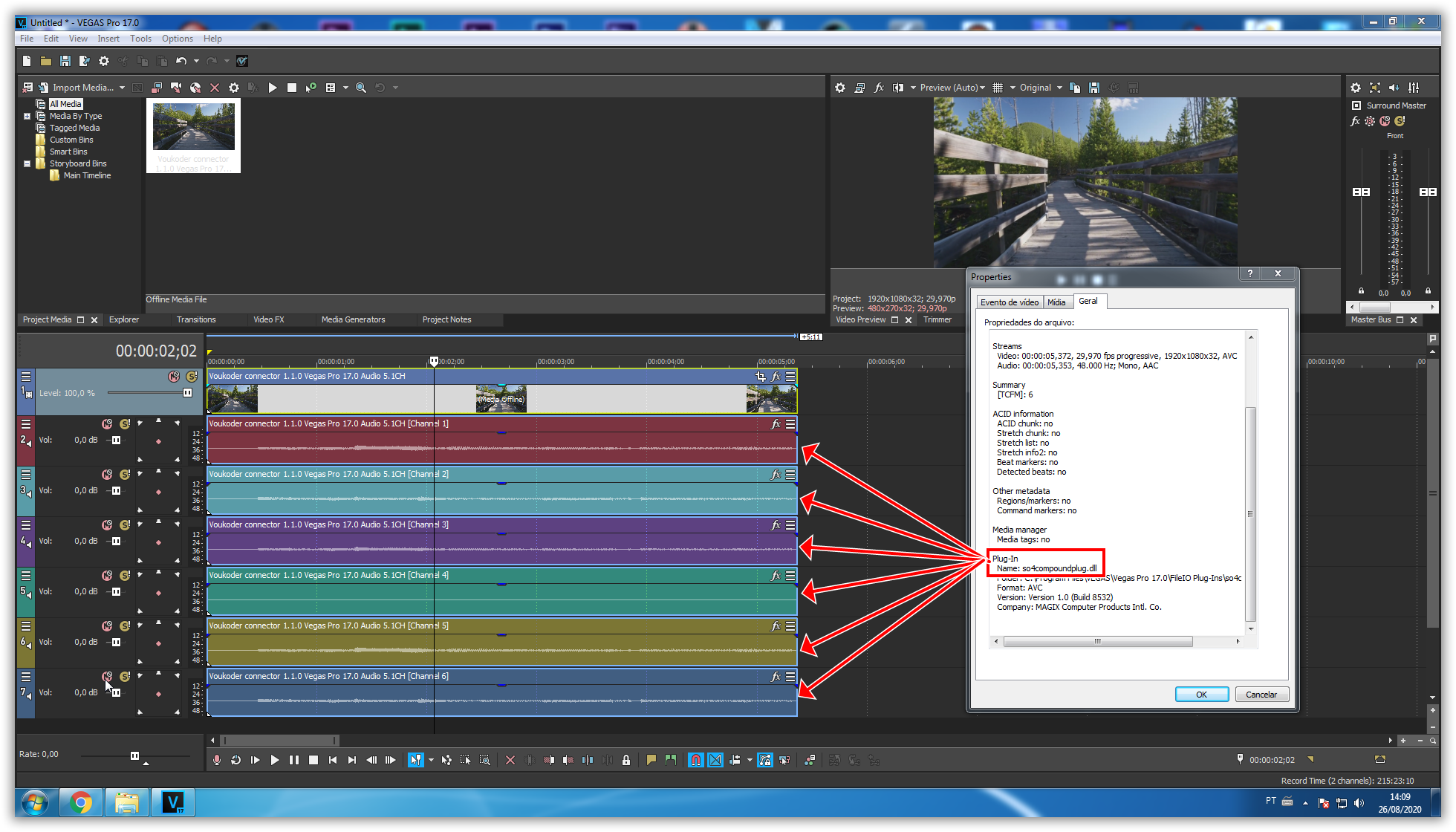

    But Vegas Pro 17.0 has a bug in the So4compoundplug plug-in that causes AAC 5.1 audio channels to be imported into separate individual channels on the timeline.

    If the So4compoundplug plug-in is disabled in the internal preferences, the old Compoundplug plug-in will be used and will import the AAC 5.1 audio channels correctly in the timeline.

    Einmal editiert, zuletzt von Joelson_Forte (26. August 2020 um 22:42)

    I confirm that the rendering of Voukoder is correct. The cause for hearing stereo in stead of 5.1 yesterday was probably my own mistake, viz incorrect configuration of the sound card. I disabled the So4compoundplug plug-in and indeed VP17 assigns the audio channels correctly now. So everything seems to work fine.

    But MediaInfo (17.12) keeps reporting 2 audio channels, while it reports 6 channels when encoding with Sony AVC/MVC. Attached is the complete report, notice the red lines:

    General

    Complete name : E:\Henk\compu en video-allerlei\Vegas Pro\Kathmandu_Voukoder_test_2.mp4

    Format : MPEG-4

    Format profile : Base Media

    Codec ID : isom (isom/iso2/avc1/mp41)

    File size : 32.8 MiB

    Duration : 1 min 0 s

    Overall bit rate : 4 581 kb/s

    Writing application : Voukoder (VEGAS)

    Video

    ID : 1

    Format : AVC

    Format/Info : Advanced Video Codec

    Format profile : High@L4

    Format settings : CABAC / 4 Ref Frames

    Format settings, CABAC : Yes

    Format settings, RefFrames : 4 frames

    Codec ID : avc1

    Codec ID/Info : Advanced Video Coding

    Duration : 1 min 0 s

    Bit rate : 4 234 kb/s

    Width : 1 920 pixels

    Height : 1 080 pixels

    Display aspect ratio : 16:9

    Frame rate mode : Constant

    Frame rate : 25.000 FPS

    Color space : YUV

    Chroma subsampling : 4:2:0

    Bit depth : 8 bits

    Scan type : Progressive

    Bits/(Pixel*Frame) : 0.082

    Stream size : 30.3 MiB (92%)

    Writing library : x264 core 157 r2981 b5bc5d6

    Encoding settings : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=24 / lookahead_threads=4 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=25 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=crf / mbtree=1 / crf=23.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00

    Audio

    ID : 2

    Format : AAC

    Format/Info : Advanced Audio Codec

    Format profile : LC

    Codec ID : mp4a-40-2

    Duration : 1 min 0 s

    Duration_LastFrame : -20 ms

    Bit rate mode : Constant

    Bit rate : 342 kb/s

    Channel(s) : 2 channels

    Channel(s)_Original : 6 channels

    Channel positions : Front: L C R, Side: L R, LFE

    Sampling rate : 48.0 kHz

    Frame rate : 46.875 FPS (1024 SPF)

    Compression mode : Lossy

    Stream size : 2.45 MiB (7%)

    Default : Yes

    Alternate group : 1
