Beiträge von dmoros78v

Zitat von michael123

Thanks!

I'm using CUDA, but cuda is not using the dedicated hardware HEVC decoding capabilities of my rtx 2080 TI...

So it seems PP is also not supporting NVENC, would be nice to have a plugin for that as well. It's nice to have the faster exporting with voukoder, but when PP starts supporting NVENC it will really speed up my editing workflow as well and probably I don't need proxies or transcoding anymore by then.

Some more information about that here: https://www.videoproc.com/troubleshoot-a…pport-nvenc.htm

You are confusing encoding with decoding. NVENC is only for real time encoding (the ENC in NVENC comes from that) So NVENC will never speed up decoding nor rendering in any program.

Now Geforce Cards also come with a hardware decoder, but it is not used per se in premiere, instead premiere uses CUDA for speeding up rendering as a whole including decoding, but it will never be as fast as an dedicated hardware decoder. But don't know i ever Adobe will add that, mostly because the moment you add any filters, the acceleration would be lost

Zitat von michael123

Hello,

I'm probably missing something here since I don't see any people asking a question similar to this one..

So it's nice that Voukoder support exporting from premiere pro while leveraging nvenc. This works great.

But while editing, assembling e.t.c. it's still the CPU of intell onboard GPU that is used for decoding (not encoding).

So my GPU is still doing nothing regarding decoding while previewing in source of program panels within PP.

Is it possible with voukoder to use nvidea gpu (nvenc) for decoding during playback?

Alles anzeigen

What you want is to enable hardware accelerated Mercury Playback Engine. that uses your GPU for rendering on CUDA cards. you know when your accelerated because the timeline is marked "yellow". You need to only add effects compatible with this for the acceleration to stay on tho. If you add any effect thats not compatible the timeline will switch "red" and the software mode engaged instead.

https://blog.pond5.com/21645-how-to-o…remiere-pro-cc/

Zitat von Vouk

Good to know! I wasn't aware of this.

Well, Me neither, I still have the 970 lying around guess I can allways pop it back in if I ever get another interlaced project

At least I’m happy we got to the bottom of the issue and the mistery has been solved

Zitat von dmoros78v

EUREKA!!!! Encoding a progressive sequence did work!

Now I wonder why would be that? I could encode those interlaced projects with the GTX 970 before, just finished such a project one month ago

[21:46:45] ---------------------------------------------

[21:46:45] Export started

[21:46:45] ---------------------------------------------

[21:46:45] Frame size: 1920x1080

[21:46:45] Pixel aspect: 1:1

[21:46:45] Frame rate: 29.97

[21:46:45] Interlaced: No

[21:46:45] Color range: tv

[21:46:45] Color space: bt709

[21:46:45] Color primaries: bt709

[21:46:45] Color TRC: bt709

[21:46:45] Sample rate: 48000

[21:46:45] Audio channels: 2

[21:46:45] ---------------------------------------------

[21:46:45] Opening codec: h264_nvenc with options: gpu=0

[21:46:45] Opening codec: aac with options: b=192000|profile=aac_low

[21:46:45] Requesting pixel format: yuv420p

[21:46:45] Frame #0: vRender: 141362 us, vProcess: 10 us, vEncoding: 5680 us, Latency: 147107 us

[21:46:45] Frame #1: vRender: 26 us, vProcess: 6 us, vEncoding: 1587 us, aRender: 27 us, aEncoding: 2819 us, Latency: 5044 us

[21:46:45] Frame #2: vRender: 27 us, vProcess: 5 us, vEncoding: 1862 us, aRender: 55 us, aEncoding: 238 us, Latency: 3333 us

...

...

...

Alles anzeigen

Found an interesting link...

https://devtalk.nvidia.com/default/topic/…deo-with-nvenc/

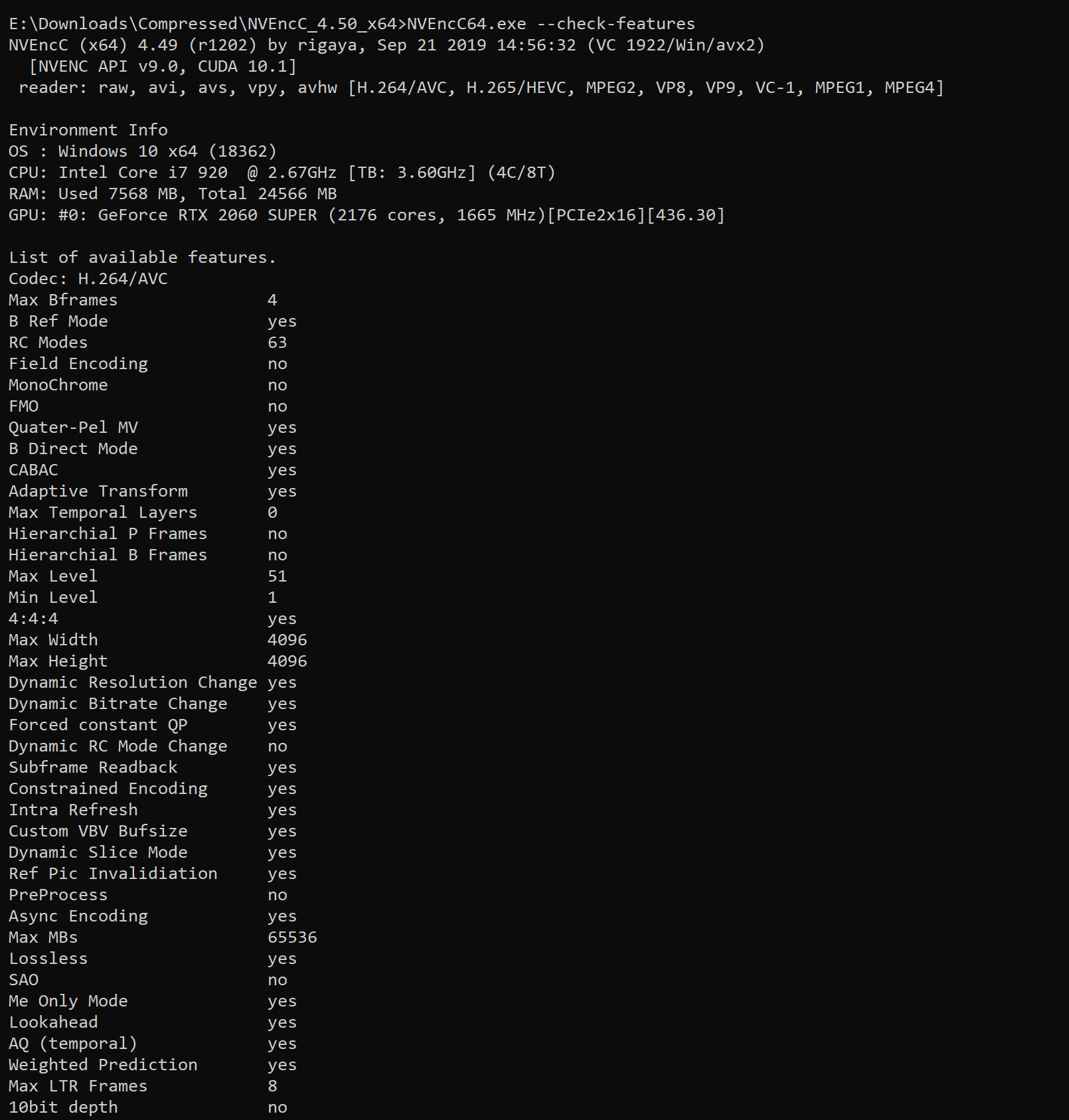

Proceeded to check myself the available features of the RTX 2060 for NVENC and it seems like nVidia dropped interlaced encoding support on RTX cards

Zitat von Vogelforscher

The only thing that is not set to default is that your source and export is interlaced. Maybe you could try export a non interlaced source file just to be sure it's not the interlacing.

EUREKA!!!! Encoding a progressive sequence did work!

Now I wonder why would be that? I could encode those interlaced projects with the GTX 970 before, just finished such a project one month ago

[21:46:45] ---------------------------------------------

[21:46:45] Export started

[21:46:45] ---------------------------------------------

[21:46:45] Frame size: 1920x1080

[21:46:45] Pixel aspect: 1:1

[21:46:45] Frame rate: 29.97

[21:46:45] Interlaced: No

[21:46:45] Color range: tv

[21:46:45] Color space: bt709

[21:46:45] Color primaries: bt709

[21:46:45] Color TRC: bt709

[21:46:45] Sample rate: 48000

[21:46:45] Audio channels: 2

[21:46:45] ---------------------------------------------

[21:46:45] Opening codec: h264_nvenc with options: gpu=0

[21:46:45] Opening codec: aac with options: b=192000|profile=aac_low

[21:46:45] Requesting pixel format: yuv420p

[21:46:45] Frame #0: vRender: 141362 us, vProcess: 10 us, vEncoding: 5680 us, Latency: 147107 us

[21:46:45] Frame #1: vRender: 26 us, vProcess: 6 us, vEncoding: 1587 us, aRender: 27 us, aEncoding: 2819 us, Latency: 5044 us

[21:46:45] Frame #2: vRender: 27 us, vProcess: 5 us, vEncoding: 1862 us, aRender: 55 us, aEncoding: 238 us, Latency: 3333 us

[21:46:45] Frame #3: vRender: 22 us, vProcess: 5 us, vEncoding: 1872 us, aRender: 82 us, aEncoding: 300 us, Latency: 2333 us

[21:46:45] Frame #4: vRender: 26 us, vProcess: 6 us, vEncoding: 1702 us, aRender: 20 us, aEncoding: 278 us, Latency: 2464 us

[21:46:45] Frame #5: vRender: 305 us, vProcess: 4 us, vEncoding: 1672 us, aRender: 73 us, aEncoding: 301 us, Latency: 2401 us

[21:46:45] Frame #6: vRender: 28 us, vProcess: 6 us, vEncoding: 1688 us, aRender: 22 us, aEncoding: 282 us, Latency: 2465 us

[21:46:45] Frame #7: vRender: 29 us, vProcess: 6 us, vEncoding: 1703 us, aRender: 89 us, aEncoding: 310 us, Latency: 2187 us

[21:46:45] Frame #8: vRender: 29 us, vProcess: 7 us, vEncoding: 2042 us, aRender: 22 us, aEncoding: 282 us, Latency: 2837 us

[21:46:45] Frame #9: vRender: 78859 us, vProcess: 8 us, vEncoding: 2314 us, aRender: 22 us, aEncoding: 222 us, Latency: 81875 us

[21:46:45] Frame #10: vRender: 204 us, vProcess: 6 us, vEncoding: 2153 us, aRender: 98 us, aEncoding: 338 us, Latency: 2851 us

[21:46:45] Frame #11: vRender: 522 us, vProcess: 7 us, vEncoding: 2391 us, aRender: 22 us, aEncoding: 297 us, Latency: 3699 us

[21:46:45] Frame #12: vRender: 22 us, vProcess: 7 us, vEncoding: 2246 us, aRender: 75 us, aEncoding: 323 us, Latency: 2725 us

[21:46:45] Frame #13: vRender: 22 us, vProcess: 5 us, vEncoding: 2181 us, aRender: 19 us, aEncoding: 229 us, Latency: 2867 us

[21:46:45] Frame #14: vRender: 20 us, vProcess: 5 us, vEncoding: 2076 us, aRender: 93 us, aEncoding: 278 us, Latency: 2526 us

[21:46:45] Frame #15: vRender: 39948 us, vProcess: 10 us, vEncoding: 2340 us, aRender: 22 us, aEncoding: 298 us, Latency: 43101 us

[21:46:45] Frame #16: vRender: 23 us, vProcess: 6 us, vEncoding: 2054 us, aRender: 22 us, aEncoding: 268 us, Latency: 2846 us

[21:46:45] Frame #17: vRender: 21 us, vProcess: 5 us, vEncoding: 2267 us, aRender: 81 us, aEncoding: 330 us, Latency: 2763 us

[21:46:45] Frame #18: vRender: 33 us, vProcess: 7 us, vEncoding: 1520 us, aRender: 21 us, aEncoding: 195 us, Latency: 2099 us

[21:46:45] Frame #19: vRender: 22 us, vProcess: 5 us, vEncoding: 1375 us, aRender: 65 us, aEncoding: 225 us, Latency: 1735 us

[21:46:45] Frame #20: vRender: 227 us, vProcess: 5 us, vEncoding: 2042 us, aRender: 17 us, aEncoding: 193 us, Latency: 2828 us

[21:46:45] Frame #21: vRender: 18 us, vProcess: 4 us, vEncoding: 2091 us, aRender: 88 us, aEncoding: 257 us, Latency: 2498 us

[21:46:45] Frame #22: vRender: 25 us, vProcess: 5 us, vEncoding: 1519 us, aRender: 17 us, aEncoding: 220 us, Latency: 2141 us

[21:46:45] Frame #23: vRender: 24 us, vProcess: 5 us, vEncoding: 2119 us, aRender: 60 us, aEncoding: 242 us, Latency: 2490 us

...

...

...

Well today I took the time to fully clean drivers and try older versions (was on 436.30)

Tried 431.60 - Doesn´t work

Tried 436.02 - Doesn´t work

So far have not been able to do hardware encode on premiere with this card.

Zitat von interestica

I'm having the same issue with a GTX1060. (2.2 and 2.2.2 - NVENC h264)

NVENC HEVC seems to work though. Do you only have the prob with h.264?

Actually I didn´t try HVEC, after I saw your post I tried it but nope, it doesnt work

Make sure there is at least one free NVENC session and close all other programs that make use of NVENC.

[12:51:43] ---------------------------------------------

[12:51:43] Export started

[12:51:43] ---------------------------------------------

[12:51:43] Frame size: 1920x1080

[12:51:43] Pixel aspect: 1:1

[12:51:43] Frame rate: 29.97

[12:51:43] Interlaced: Top first

[12:51:43] Color range: tv

[12:51:43] Color space: bt709

[12:51:43] Color primaries: bt709

[12:51:43] Color TRC: bt709

[12:51:43] Sample rate: 48000

[12:51:43] Audio channels: 2

[12:51:43] ---------------------------------------------

[12:51:43] Opening codec: hevc_nvenc with options: gpu=0

[12:51:44] Failed opening codec: hevc_nvenc

[12:51:44] Unable to open video encoder: hevc_nvenc

[12:51:44] Closing encoders ...

[12:51:44] Unable to initialize the encoder.

This has most likely to do with an invalid combination of options.

Make sure there is at least one free NVENC session and close all other programs that make use of NVENC.

Zitat von Vouk

Please also check if other programs can use nvenc (i.e. OBS, ffmpeg.exe, ...).

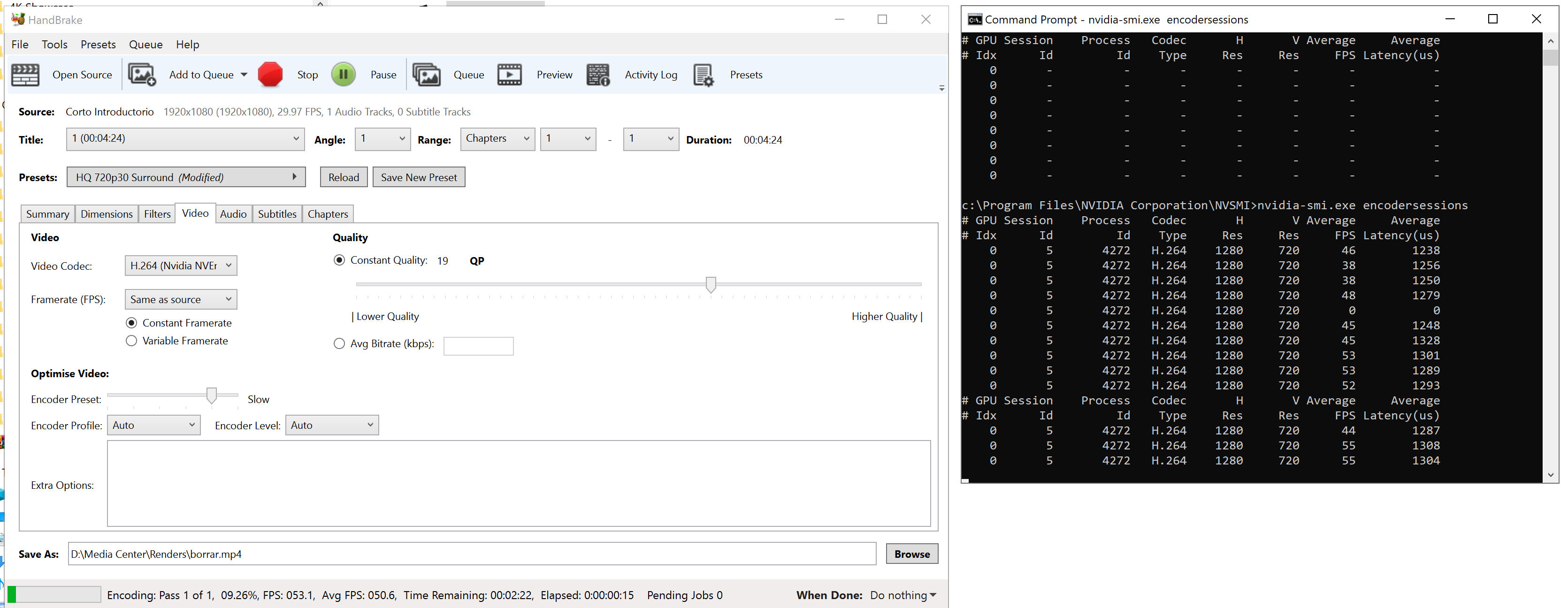

In previous post I showed Handbrake working perfectly, now I tested OBS as well and it records without issue as well. Only Voukoder is not working with my brand new RTX 2060

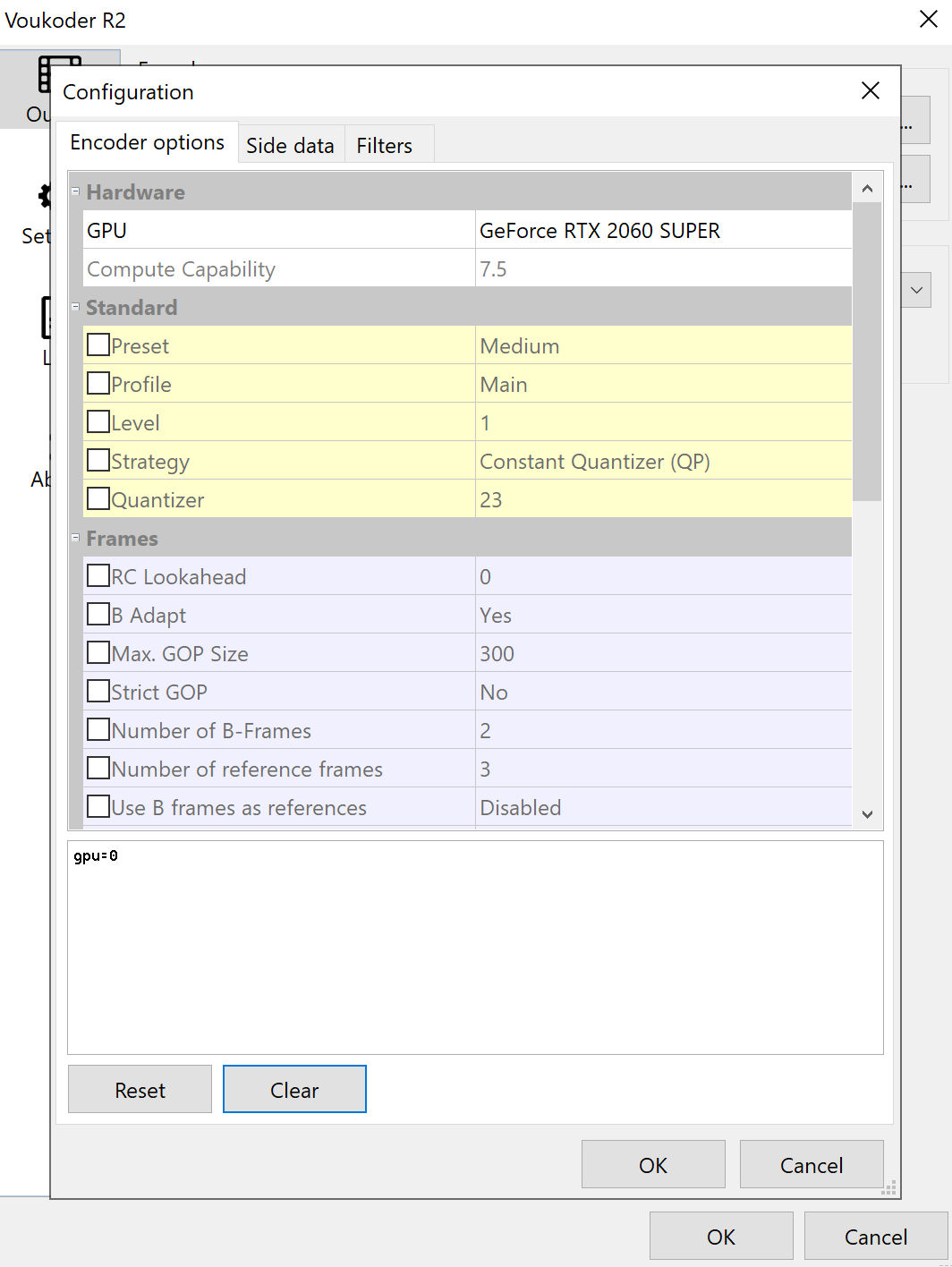

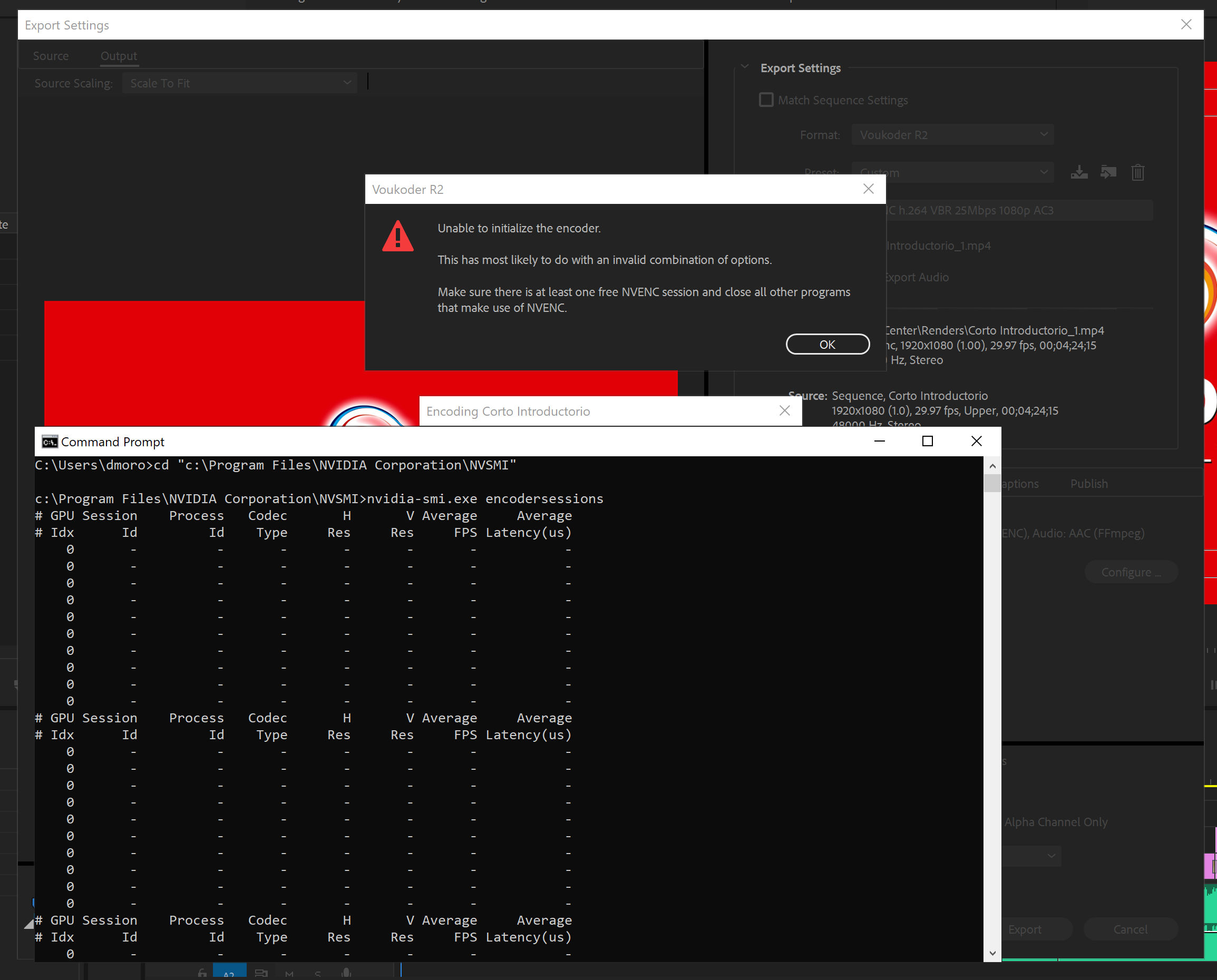

Ok here are the screencaps of the settings used and the encoder sessions. It never opens a session and there is no other program with an open session itself.

Again I tested Handbrake and that works ok.

Below the log of this new test, attached all the screencaps

[07:37:58] ---------------------------------------------

[07:37:58] Export started

[07:37:58] ---------------------------------------------

[07:37:58] Frame size: 1920x1080

[07:37:58] Pixel aspect: 1:1

[07:37:58] Frame rate: 29.97

[07:37:58] Interlaced: Top first

[07:37:58] Color range: tv

[07:37:58] Color space: bt709

[07:37:58] Color primaries: bt709

[07:37:58] Color TRC: bt709

[07:37:58] Sample rate: 48000

[07:37:58] Audio channels: 2

[07:37:58] ---------------------------------------------

[07:37:58] Opening codec: h264_nvenc with options: gpu=0

[07:37:58] Failed opening codec: h264_nvenc

[07:37:58] Unable to open video encoder: h264_nvenc

[07:37:58] Closing encoders ...

[07:37:58] Unable to initialize the encoder.

This has most likely to do with an invalid combination of options.

Make sure there is at least one free NVENC session and close all other programs that make use of NVENC.

Yes I did a clean installation of the latest drivers 436.30. Used DDU (display driver unninstaller) to clean old drivers, then installed 436.30 using the clean installation option.

I did check for free NVENC session and there wasno problem there, will try againg later and grab an screenshot to post here

Nope as I explained no options make it work, not even leaving everything as default and unchecked. For some reason RTX 2060 does not work with NVENC on Voukoder (Handbrake works perfectly tho)

[22:18:07] ---------------------------------------------

[22:18:07] Export started

[22:18:07] ---------------------------------------------

[22:18:07] Frame size: 1920x1080

[22:18:07] Pixel aspect: 1:1

[22:18:07] Frame rate: 29.97

[22:18:07] Interlaced: Top first

[22:18:07] Color range: tv

[22:18:07] Color space: bt709

[22:18:07] Color primaries: bt709

[22:18:07] Color TRC: bt709

[22:18:07] Sample rate: 48000

[22:18:07] Audio channels: 2

[22:18:07] ---------------------------------------------

[22:18:07] Opening codec: h264_nvenc with options: gpu=0

[22:18:07] Failed opening codec: h264_nvenc

[22:18:07] Unable to open video encoder: h264_nvenc

[22:18:07] Closing encoders ...

[22:18:07] Unable to initialize the encoder.

This has most likely to do with an invalid combination of options.

Make sure there is at least one free NVENC session and close all other programs that make use of NVENC.

I was using Voukoder 2.2 perfectly with a Geforce GTX 970. This weekend I upgraded that card to a RTX 2060 Super wich I heard Turing was great with NVENC. Tried to encode a Premiere project but immediately saw the error of the subject. Geforce Drivers 436.30 are installed (clean installation using DDU). I tried VBR, CBR, CQ, disabling all options and leaving it as it is in default but got the same error every time.

Non NVENC codecs works perfectly, only the NVIDIA hardware accelerated ones fail.

Below the log data

[10:05:02] ---------------------------------------------

[10:05:02] Export started

[10:05:02] ---------------------------------------------

[10:05:02] Frame size: 1920x1080

[10:05:02] Pixel aspect: 1:1

[10:05:02] Frame rate: 29.97

[10:05:02] Interlaced: Top first

[10:05:02] Color range: tv

[10:05:02] Color space: bt709

[10:05:02] Color primaries: bt709

[10:05:02] Color TRC: bt709

[10:05:02] Sample rate: 48000

[10:05:02] Audio channels: 2

[10:05:02] ---------------------------------------------

[10:05:02] Opening codec: h264_nvenc with options: b=25000000|bluray-compat=1|bufsize=15000000|gpu=0|level=4.1|maxrate=30000000|preset=bd|profile=high|rc=vbr

[10:05:02] Failed opening codec: h264_nvenc

[10:05:02] Unable to open video encoder: h264_nvenc

[10:05:02] Closing encoders ...

[10:05:02] Unable to initialize the encoder.

This has most likely to do with an invalid combination of options.

Make sure there is at least one free NVENC session and close all other programs that make use of NVENC.

Please check if the used options and presets comply to the selected output level. Even the encoders default configuration (no options set at all) might not comply with all levels.
